Paper Product-Making Machine

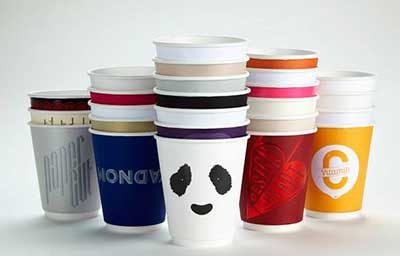

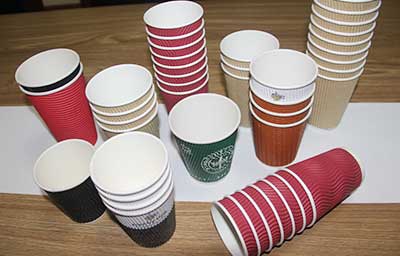

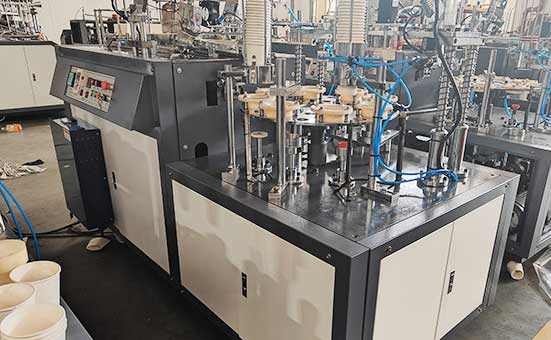

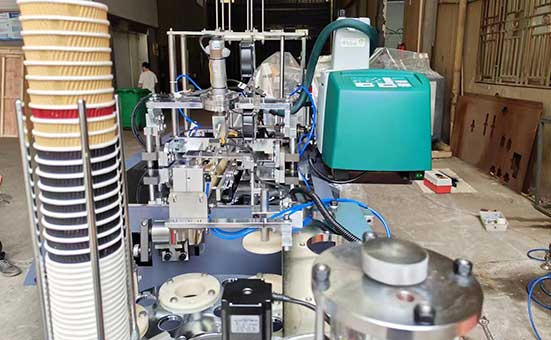

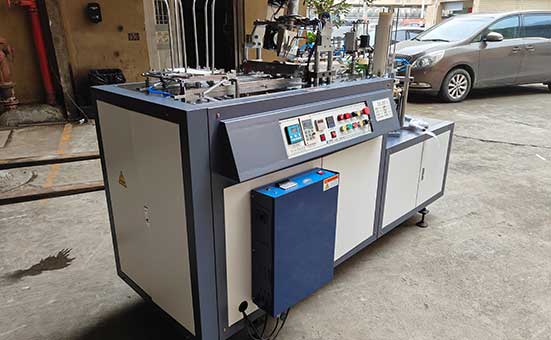

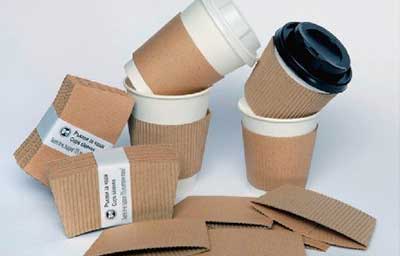

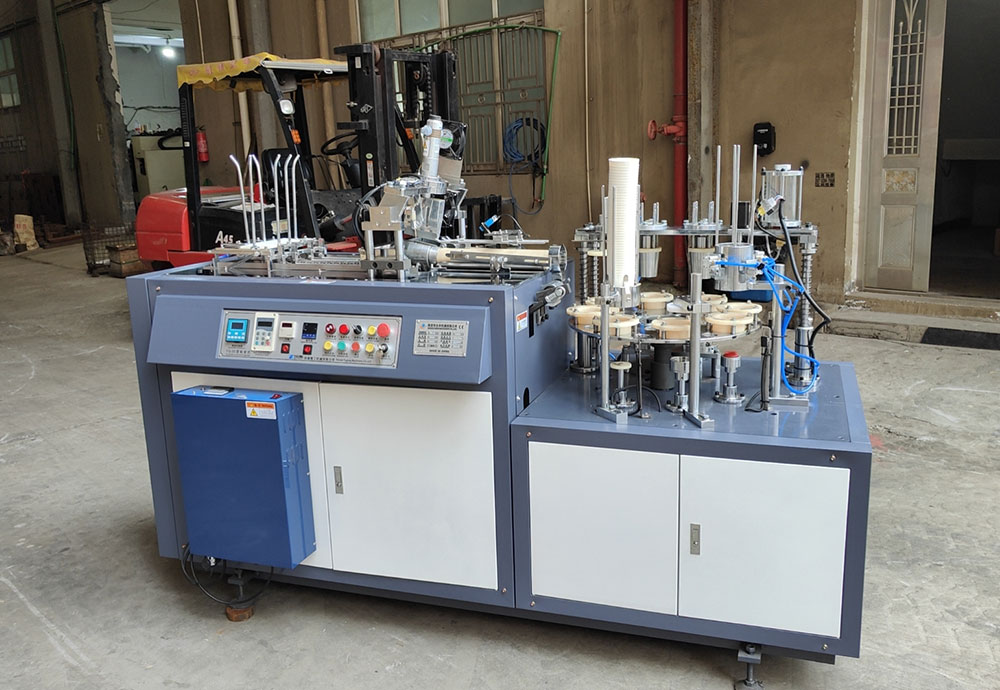

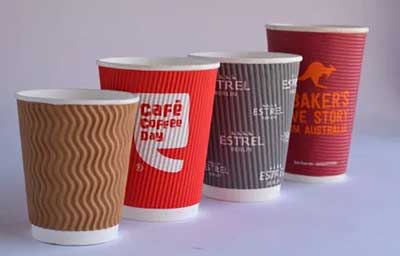

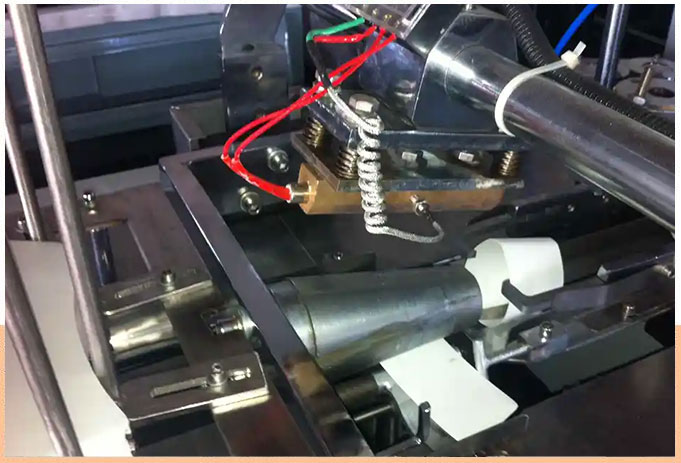

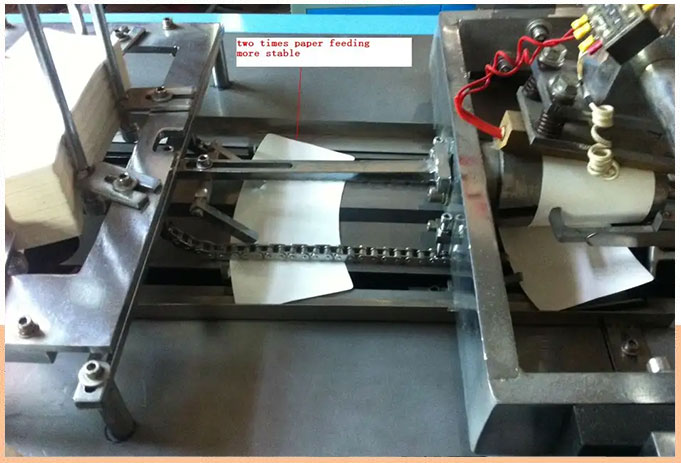

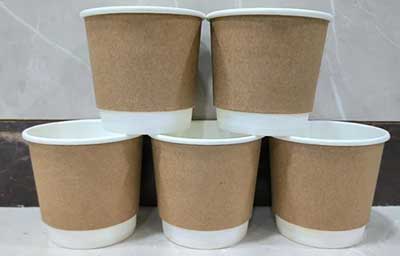

This paper cup sleeve and closing machine is designed and manufactured according to market demands. It is used to produce corrugated cups, double-wall cups, and more. Various tasks can be carried out, including auto paper feeding, glue spraying, sealing, photocell monitoring, fault alarm, etc. Our paper cup sleeve and closing machine uses an ultrasonic sealing system which makes the production of double-layer cup possible. It features high reliability and is easy to manipulate and maintain.
| Model | YG-35 Paper Cup Sleeve Machine |
| Paper Cup Size | 6-16oz |
| Paper Cup Top Diameter | Min 65mm-max94mm |
| Paper Cup Bottom Diameter | Min45mm-60mm |
| Paper Cup Height | Min60mm-135mm |
| Raw Material | PE COATED PAPER.RIPPLE PAPER ETC |
| Speed | 50-55pcs/min(Speed of 20 hours stable running per day) |
| Suitable paper weight | 150-350gsm |
| Voltage supply | 220v50hz single phase/ 380v50hz 3-phase (better to use 380v50hz 3-phase) *If user’s voltage supply is different, please inform us in advance. |
| General power | 4.7KW |
| Net weight | 1500kgs |
| Measurement (mm) | 2150*950*1650MM |
| Cup Side Sealing | Ultrasonic |
| Note: We can customize machine and mold according to customer’s requirement. | |

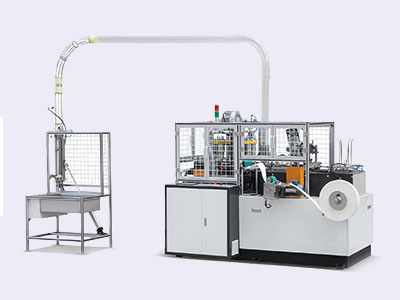

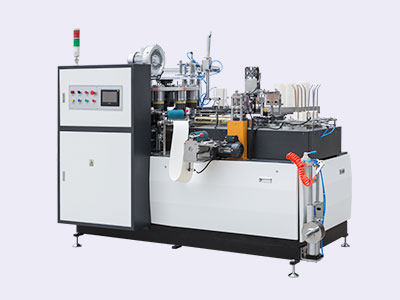

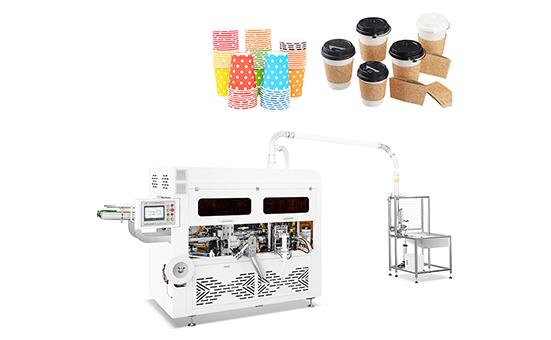

Paper Cup Machine

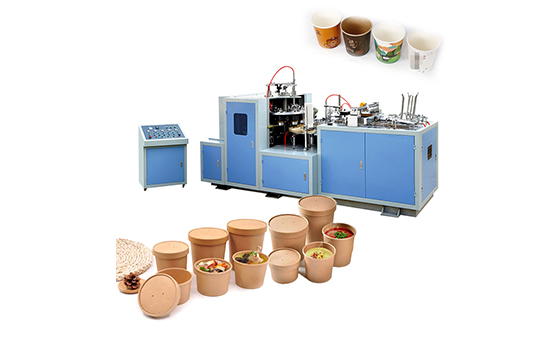

Paper Bowl Machine

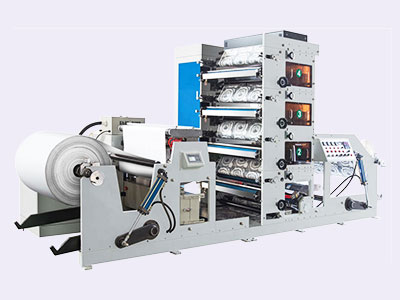

Flexo Printing Machine
